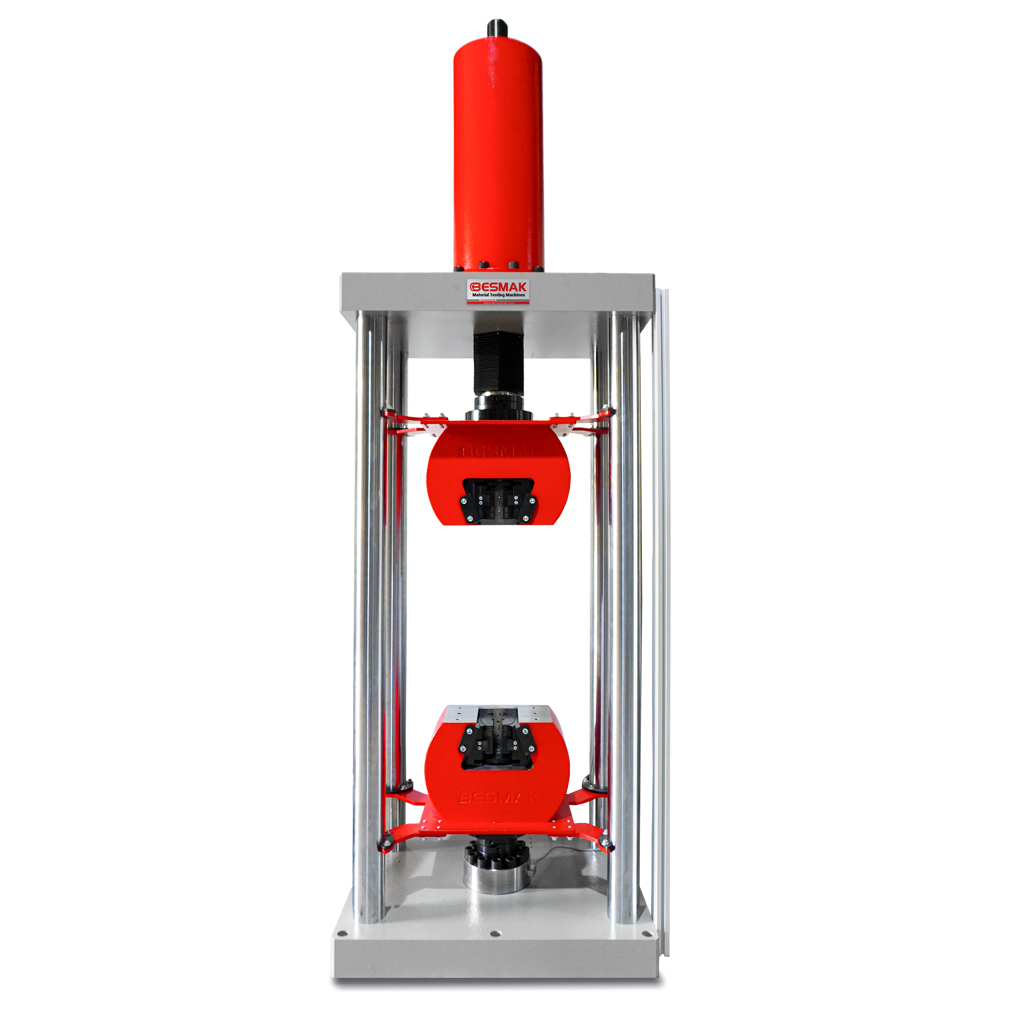

Servo Hydraulic Universal Testing Machine, servo-hydraulic, 4 columns type rigid load frame with single long test space to perform tensile, compression and other universal type of tests. Machine comes with hydraulic wedge type grips for testing round (6-80mm)and flat specimens (1-30mm). Machine is equipped with a double acting special low friction piston with 600 mm piston stroke, due to this long piston stroke user can test variety of samples with different length, the vertical test area is 700 mm.

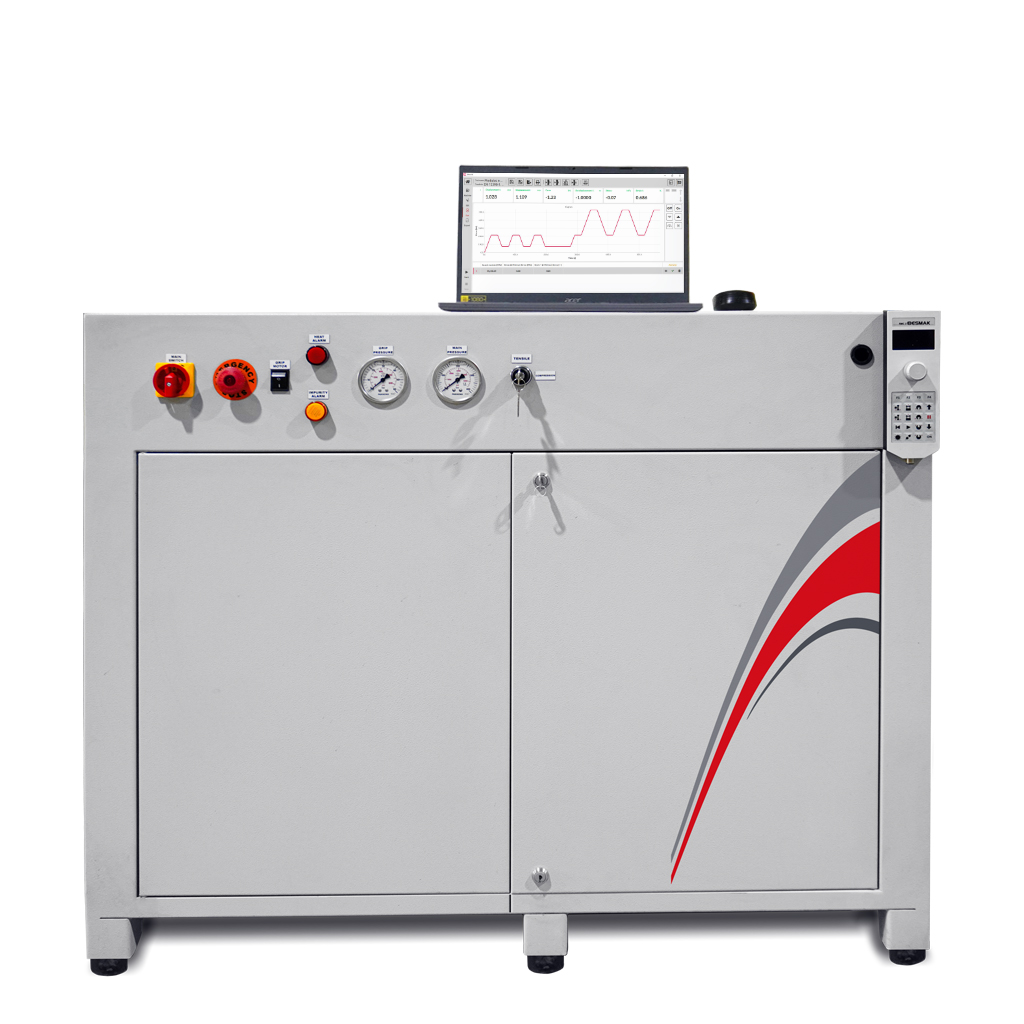

Load measurement and control with a load cell of class 0.5, 2.5 kHz data accusation Close-loop electronic controller “EDC”, The electronic control unit of system is with 2500 samples per second data acquisition speed. Accurate synchronization between frame and sensors will be done/controlled by advanced PID or close loop configuration. Electronic control unit has total 5 channels (2 internal, 3 external). Due to these channels electronic control unit can control 5 no. sensors at same time.
Electronic control unit is feasible to attach and control video extensometer, laser extensometer, LVDT, automatic extensometer, strain gauge, load cell, SSI and TTL type sensors (optional cards and plugs may required). Special Eeprom sensor plugs can store calibration and sensor data inside it. Due to this feature control unit can read sensor and calibration data even if user change it with new unit. User can read and control each attached sensor with control unit, for example; 2nd load cell, LVDTs and extensometers. can perform load and displacement controlled test, position measurement and control with position sensor of 1 micron resolution.
Handheld unit to move machine up and down without use of computer and to control jaws to fix sample into the machine easily accurately and safely, Load channel with a resolution of 20 bit, adjustable load control in between 0.01kN/s - 25kN/s, adjustable displacement control in between 0.1mm/min - 100 mm/min.
Besmak Universal Testing Software, user defined result parameters (connected to load and position), result can be transferred to Excel format(Raw Values). System comes with test software. User can see real time test data from the software, can save require data and can get a test graph as well. User can also change graph axis between time, load, stress, strain, displacement etc.
Test data can be transfer to excel format to use in research and development project. After finishing a test user can save test in computer and can also get a print as a report.
Machine is feasible to test samples according to DIN EN ISO 6892-1
