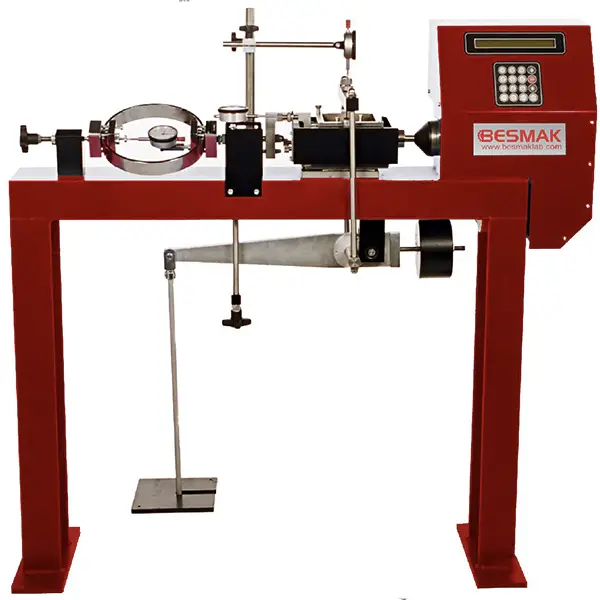

BSO-221 – DIRECT DIGITAL SHEAR APPARATUS
This test is used to determine the shear strength of a soil sample subjected to orthogonal stress with respect to the failure plane. The sample is enclosed within a robust metal box horizontally split into two halves and provided with a vertical plunger. The shearing stress is created by imposing a movement of the lower half of the shear box, whilst applying a static load to the load plunger. In the more refined machines, called “controlled displacement equipment”, the variables that may be measured during the test are as follows: vertical strain, horizontal strain, shearing stress whilst the vertical force and displacement speed are kept absolutely constant.
- To accept the following sample sizes:
- 60mm diameter
- 60mm square
- 100mm diameter
- 100mm square
- 2.5 inch diameter
Standards:
- ASTM D3038
- BS 1377;7
- AASHTO T236
- BS-1377-7
Category:
Soil
FEATURES
- Microprocessor controlled digital stepper motor
- Control via the digital display with keyboard
- Return datum facility
- Fully steplessly variable speed over the range of 0.00001 to 9.99999mm/minute
- RS232 port
- Forward/reverse travel limit switches
- Will accept either analogue or digital measuring devices
ACCESSORIES
- Load Ring 3 kN capacity
- Shear box set 60 mm²
- Shear box set 100 mm²
- Extrusion tool,
- Dial Gauge 0,002 mm precision for vertical
- Dial Gauge 0,01 mm precision for horizontal
- Weight Set 50 kg
- Weight hanger
| Product Code | Product Name |
|---|---|
| BSO-221 | Direct Digital Shear Test Set |
| BSO-221/2 | Digital Direct Shear Test Machine |
| BSO-221/D60 | The test sample for 60 mm diameter |
| BSO-221/S60 | The test sample for 60 mm square |
| BSO-221/D100 | The test sample for 100 mm diameter |
| BSO-220/S100 | The test sample for 100 mm square |
| BSO-220/S500 | The test sample for 500 mm square |
