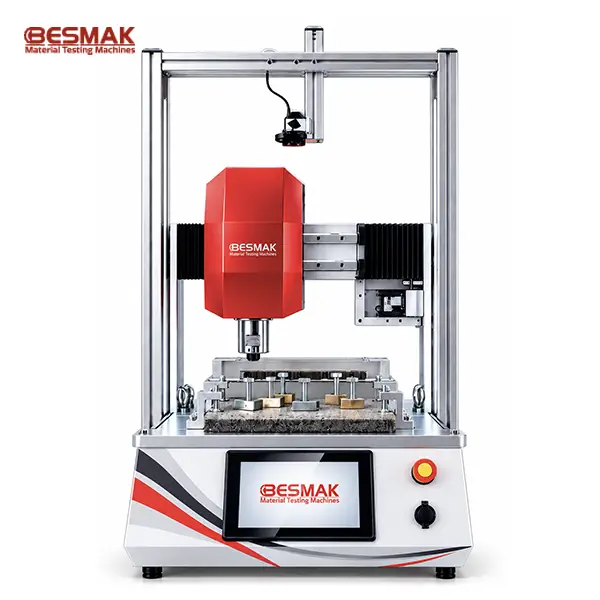

FULLY AUTOMATIC PULL-OFF ADHESION TESTER – BMT-PO-A
Load the specimen, press start, and let the machine do the repetitive part. The BMT-PO-A finds each dolly with its camera, moves to it on three axes, pulls it off at a controlled rate and records the result — then goes straight to the next one.
Built for concrete, coatings, paints and varnishes, it runs up to 12 pull-off tests on a single specimen without anyone repositioning the head between points. Load capacity is 2 tons as standard and can be customized to your requirements.
Standards:
- En 1348
| Load capacity | Test points per specimen | Test speed | Standards supported |
|---|---|---|---|
| 2 ton Standard * custom on request | Up to 12 | Adjustable Load rate & displacement rate | 7 ASTM / ISO / EN |
Manual pull-off testing works — until you have twelve points to test
On a single dolly, a handheld pull-off tester is fine. On a full specimen it becomes a long, operator-dependent job: mark every point, position the head by hand, pull, write the number down, repeat. Small differences in placement creep in from one point to the next, and every hand-copied value is a chance for a transcription error. The BMT-PO-A takes those steps off the operator’s hands.
| Step | Manual testing | BMT-PO-A |
|---|---|---|
| Setup | Each test point is marked and prepared by hand | The AI-assisted camera identifies the specimen type and the location of every test point |
| Positioning | Operator places the tester on every dolly, so placement varies | 3-axis motion moves the head to each target in X, Y and Z |
| Pulling | Requires continuous operator involvement | Load rate or displacement rate is set once and applied identically on every point |
| Recording | Results written down manually — slow and error-prone | Every result is saved digitally and shown on the touch screen |
| Throughput | Multi-point testing is slow and labour-intensive | Up to 12 targets run back to back on one specimen |
How the automatic pull-off test works
Five stages, repeated for every dolly on the specimen: detect, position, test, record, next. The operator prepares the specimen; the machine handles the sequence.
Detect
The AI-assisted overhead camera recognises the specimen type and finds the location of each test point.
Position
The 3-axis system moves the testing head to the selected target – 500 mmin X, 400 mm in Y, 150 mm in Z.
Test
Force is applied under load-rate or displacement-rate control, as your standards requires, and measured by a load cell.
Record
The result is saved automatically, shown on the touch screen and transferred to Besmak LitestX software-nothing to copy by hand.
Next
The machine moves on to the next target on its own, until all points-up to 12-are tested.
Custon load capacity, built around your test program
The BMT-PO-A ships with a 2-ton load capacity as standards. Not every lab needs the same force range, though. If your materials, dolly sizes or test standards call for something different, we configure the machine to match: load capacity, test area dimensions and the number of dolly positions. Price and delivery time are calculated for each configuration.
Standard Configuration
2-ton load capacity and up to 12 test points per specimen, suitable for most pull-off and bond-strength tests on concrete, coatings, paints and varnishes.
Custom Configuration
Load capacity, test area and dolly layout set to your requirements. Tells us what you test, the dolly sizes you use and the maximum pull-off force you expect, and our engineers wills propose the right setup, with price and delivery time, for your lab.
What changes in your lab when the test runs itself
Faster multi-point testing
No re-positioning between dollies. A full set of test points on one specimen runs as a single sequence.
Less operator influence
Automatic positioning and a pre-set load or displacement rate mean every point is tested the same way, regardless of who is running the machine.
Clean digital records
Results are stored digitally as they happen and transferred to Besmak LitestX software, which removes transcription errors and makes reporting easier.
Your technicians, freed up
The operator prepares specimens and reviews results instead of standing over each pull — useful on large projects with high test volumes.
BMT-PO-A Technical Specifications
Key figures for planning your lab layout and test program. For dolly compatibility, custom load capacity and installation requirements, ask our technical team.
| Technical Specification | Value |
|---|---|
| Load capacity | 2 ton (standard) — customizable on request |
| Test targets per specimen | Up to 12 (standard) — configurable |
| Test speed | Adjustable — load-rate and displacement-rate control |
| X / Y / Z travel | 500 / 400 / 150 mm |
| Measurement | Load cell |
| Target detection | AI-assisted camera — specimen type and test-point location |
| Control panel | LCD touch screen |
| Test area & dolly layout | Configurable to your specimens |
| Software | Besmak LitestX |
| Power supply | 220 V · no compressed air required |
| Dimensions (W × D × H, standard) | 680 × 1035 × 1260 mm |
| Weight | 330 kg |
