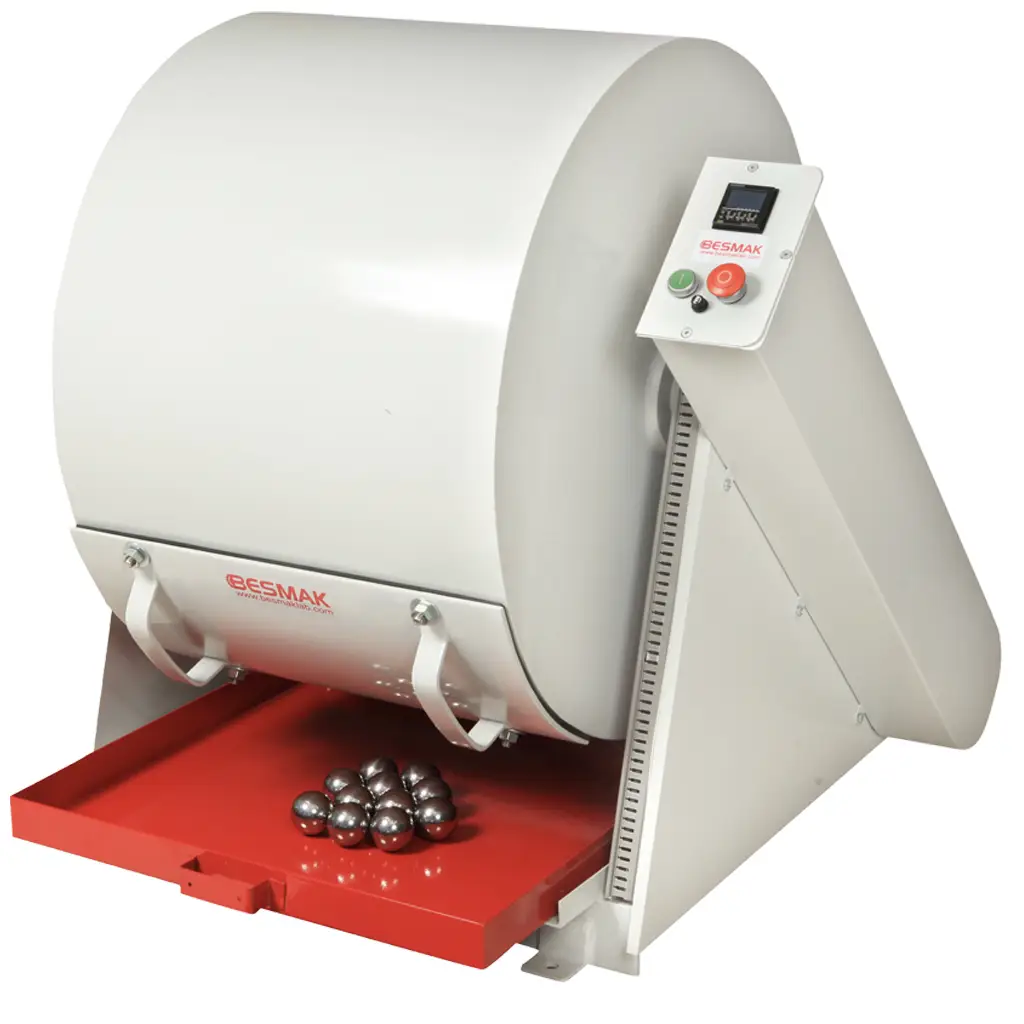

BAG-407 – LOS ANGELES ABRASION VALUE
The Los Angeles Abrasion Test is widely used as an indicator of the relative quality of aggregates. The test measures the degradation of standard aggregate gradations when subjected to abrasion and impact in a rotating steel drum containing an abrasive charge of steel balls. Up to twelve steel balls are used, depending on the gradation of the test sample.
The unit is fully coated with electrostatic paint and can be easily set to comply with ASTM and EN standards. The desired number of rotations can be selected, and the machine automatically stops after the preset number of revolutions.
- Weight : 475 kg 355 kg
- Dimensions (w x l x h) : 970 x 1100 x 1270 mm 830 x 950 x 930 mm
Standards:
- EN 1097-2
- ASTM C131
- C535
Category:
Aggregate
FEATURES
- Adjustable number of rotations
- Automatic stop after preset cycles
- Emergency stop button
- Collection plate
OPTIONAL ACCESSORIES
- Sieve
- Safety cabinet
- Abrasion balls
- A total of 12 ASTM balls and 11 EN balls are available.
- Power supply: 220 V, 50 Hz.
WEIGHT
- 475 kg
- 355 kg
DIMENSIONS (W × L × H)
- 970 × 1100 × 1270 mm
- 830 × 950 × 930 mm
| Product Code | Product Name |
|---|---|
| BAG-407 | Los Angeles Abrasion Machine |
| BAG-407/3 | Abrasive Charges Set / EN |
| BAG-407/4 | Abrasive Charges Set / ASTM |
| BAG-407/5 | Flakiness Sieve Set Cabinet |
| BAG-407/6 | Motor |
