BAS-515/2 – AUTOMATIC SOFTENING POINT APPARATUS (RING & BALL TEST SET)
The automatic softening point apparatus is used to determine the softening point of bitumen in accordance with EN 1427, ASTM D36, and AASHTO T53 standards. The machine can record the temperature for each bitumen sample individually and track the differences between samples. The bath temperature is measured and controlled by an electronic system to ensure the 5 °C/min temperature rise rate specified in the standards.
During the test, an electronically speed-controlled magnetic stirrer adjustable between 0 and 160 rpm is used to ensure homogeneous temperature distribution inside the bath.

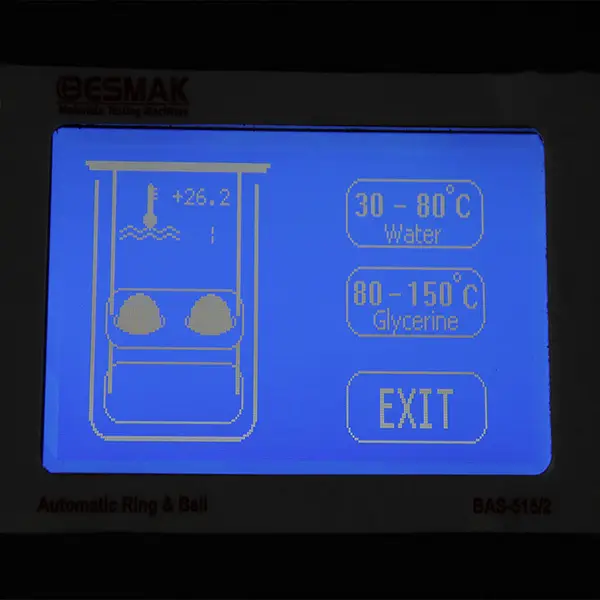

Two test parameters can be selected via the microprocessor menu:
-
Boiled distilled water for softening point tests in the 30–80 °C range
-
Glycerol for softening point tests in the 80–150 °C range
The integrated control unit, featuring a touchscreen and graphical menu, enables command input and display of test results. Test data can be stored and printed using a compatible printer.
Standards:
The device consists of the following components:
-
Electronic Control Unit
-
Temperature sensor (probe)
-
Optical sensors
-
Electric heater
-
Magnetic stirrer
-
Beaker
-
Ring holder
-
10 steel balls and 10 rings
-
Heater: 0, 8 KW
-
Weight: 22 kg
-
Dimensions: 320x400x455
-
Power Supply: 220 – 240V 1ph 50/60Hz
| Product Code | Product Name |
|---|---|
| BAS-515/2 | Automatic Softening Point Machine |
| BAS-515/2.1 | Set Of Rings For Automatic Softening Point Machine |
| BAS-515/2.2 | Stell Ball For Automatic Softening Point Machine |
| BAS-515/2.3 | Double Apparatus For Automatic Softening Point Machine |
| BAS-515/3 | Automatic Softening Point Machine with Heating and Cooling |
