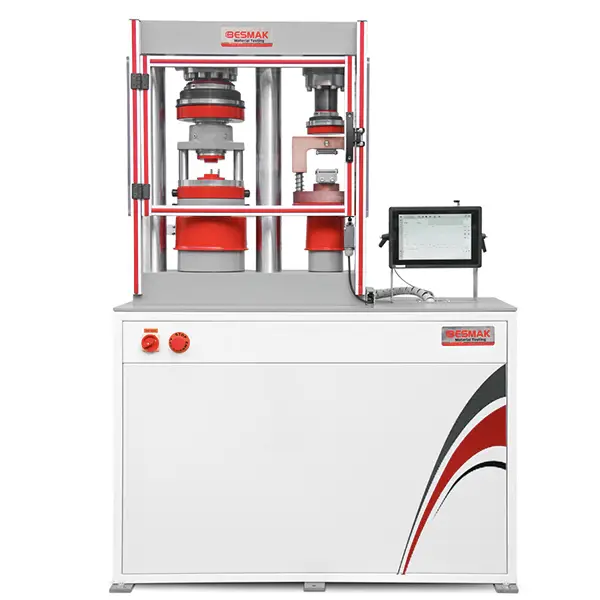

BCE-DP/LST – COMPRESSION AND FLEXURAL TESTING MACHINE, TOUCH SCREEN CONTROLLED WITH LOADCELL (DOUBLE PISTON)
A compression test determines behavior of materials under crushing loads. The specimen is compressed and deformation at various loads is recorded. BESMAK can provide and offer a lot of options for users to test mortar samples such as single or double piston, single or double test space, electromechanical or servo-hydraulic universal cement test machines.
Standards:
- EN 196-1
- 459-2
- 1744-1
- 1015-11
- 13459-2
- ASTM C109
- ASTM C348
- ASTM C349
- BS 3892-1
- 4551-1
Category:
Cement
BCE-DP/LST SERIES DOUBLE PISTON COMPRESSION AND FLEXURAL TESTING MACHINE COMES WITH
- Rigid 2-Coulmn type frame
- 1×50 mm distance pieces
- 12 channel electronic controller
- Linux based 10 inch industrial LCD display with built in test software
- PC software
- Software user manual
- Compression range 100 to 500Kn
- Bending range 10 to 100 kN
| Product Code | Product Name |
|---|---|
| BCE-DP100-10/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 100kN/10 kN Capacity (Double Piston) |
| BCE-DP200-20/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 200kN/20 kN Capacity (Double Piston) |
| BCE-DP200-50/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 200kN/50 kN Capacity (Double Piston) |
| BCE-DP250-15/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 250kN/15 kN Capacity (Double Piston) |
| BCE-DP250-25/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 250kN/25 kN Capacity (Double Piston) |
| BCE-DP300-15/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 300kN/15 kN Capacity (Double Piston) |
| BCE-DP300-20/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 300kN/20 kN Capacity (Double Piston) |
| BCE-DP300-25/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 300kN/25 kN Capacity (Double Piston) |
| BCE-DP500-15/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 500kN/15 kN Capacity (Double Piston) |
| BCE-DP500-20/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 500kN/20 kN Capacity (Double Piston) |
| BCE-DP500-100/LST | Compression and Flexural Testing Machine, Touch Screen Controlled with Loadcell, 500kN/100 kN Capacity (Double Piston) |
FRAME
- Rigid load frame in 2-column construction
- The columns are screwed free from play to the machine’s upper and lower blocks
- Suitable for testing 40×40×40, 50×50×50 mm cube and a different size of core cylinder samples
- Upper platen spherically seated to allow an inclination up to 3° for homogenous loading
- Given with corrosion-resistant distance platens for different size samples (10 mm, 20 mm, 50 mm, 80 mm)
- All transmission surfaces are additionally plane – parallel – treated and fine machined
- Lower platen marked to allow centering of both cubes and cylinders
- Safety door switch for secure operations
- Piston limit switch for secure operations
- At the end of the test process to start a new test the piston returns to the default position
CONTROL UNIT DISPLAY
- Fully automatic compression test machine with close-loop “Sematron Touch Series” advanced controller
- Controller has 1000 Hz (1 kHz) data acquisition-processing and automatic calibration feature (2,5 kHz option is available)
- Controller has 12 channels (4 analog, 4 digital, 4 series).
- Automatic user-defined pace rate adjustment with high accuracy
- Users can apply loading, unloading, hold the load at any desired point for a specific time
- Linux based 10 inch LCD touch screen with built-in test software
- Fast response real-time graphic display
- Automatic Calibration feature for all connected sensors
- Users can perform Modulus of Elasticity tests according to different standards. (This option need Displacement Sensors to read strain)
LOAD MEASUREMENT AND CONTROL
Load measurement and control is carried out with a loadcell with a sensitivity of class 1 or better according to EN-ISO-7500-1 standard.
| Product Code | Product Name |
|---|---|
| BCE-DP250-15/LFR | Compression Test Frame, 250 kN Compression 15 kN Flexural Capacity |
| BCE-DP250-20/LFR | Compression Test Frame, 250 kN Compression 20 kN Flexural Capacity |
| BCE-DP250-50/LFR | Compression Test Frame, 250 kN Compression 50 kN Flexural Capacity |
| BCE-DP300-15/LFR | Compression Test Frame, 300 kN Compression 15 kN Flexural Capacity |
