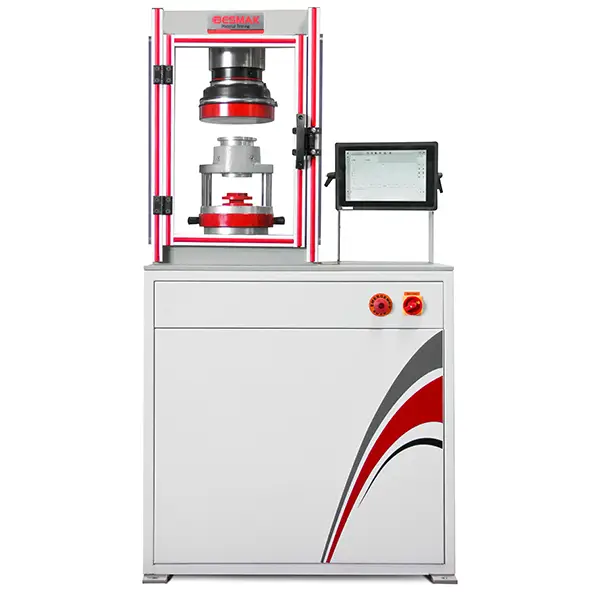

BCE-SP/LST – SERVO-HYDRAULIC CEMENT COMPRESSION TEST MACHINE (SINGLE PISTON)
A compression test determines behavior of materials under crushing loads. The specimen is compressed and deformation at various loads is recorded. BESMAK can provide and offer a lot of options for users to test mortar samples such as single or double piston, single or double test space, electromechanical or servo-hydraulic universal cement test machines.
Standards:
- EN 196-1
- 459-2
- 1744-1
- 1015-11
- 13459-2
- ASTM C1609
- ASTM C348
- ASTM C349
- BS 3892-1
- 4551-1
- EN / ISO 679
Category:
Cement
BCE-E SERIES SERVO-ELECTROMECHANIC UNIVERSAL CEMENT TEST MACHINE COMES WITH
- Rigid 2-Coulmn type frame
- 1×50 mm distance pieces
- 12 channel electronic controller
- Linux based 10 inch industrial LCD display with built in test software
- PC software
- Software user manual
- Compression range 0 to 600 kN
- Bending range 0 to 100 kN
- Complies to EN 196-1, 459-2, 1744-1, 1015-11, 13459-2, ASTM C109, BS 3892-1, 4551-1, EN/ISO 679
| Product Code | Product Name |
|---|---|
| BCE-SP100/LST | Full Automatic Servo-Hydraulic Touch Screen Cement Compression Test Machine, 100 kN Capacity |
| BCE-SP150/LST | Full Automatic Servo-Hydraulic Touch Screen Cement Compression Test Machine, 150 kN Capacity |
| BCE-SP200/LST | Full Automatic Servo-Hydraulic Touch Screen Cement Compression Test Machine, 200 kN Capacity |
| BCE-SP250/LST | Full Automatic Touch Screen Cement Compression Test Machine, 250 kN Capacity |
| BCE-SP300/LST | Full Automatic Servo-Hydraulic Touch Screen Cement Compression Test Machine, 300 kN Capacity |
| BCE-SP500/LST | Full Automatic Servo-Hydraulic Touch Screen Cement Compression Test Machine, 500 kN Capacity |
| BCE-SP300-15/LST | Full Automatic Servo-Hydraulic Touch Screen Controlled Cement Test Machine, 300kN Compression, 15 kN Flexural Capacity (single piston, dual capacity) |
| BCE-SP300-20/LST | Full Automatic Servo-Hydraulic Touch Screen Controlled Cement Test Machine, 300kN Compression, 20 kN Flexural Capacity (single piston, dual capacity) |
| BCE-SP300-50/LST | Full Automatic Servo-Hydraulic Touch Screen Controlled Cement Test Machine, 300 kN Compression, 50 kN Flexural Capacity (single piston, dual capacity) |
