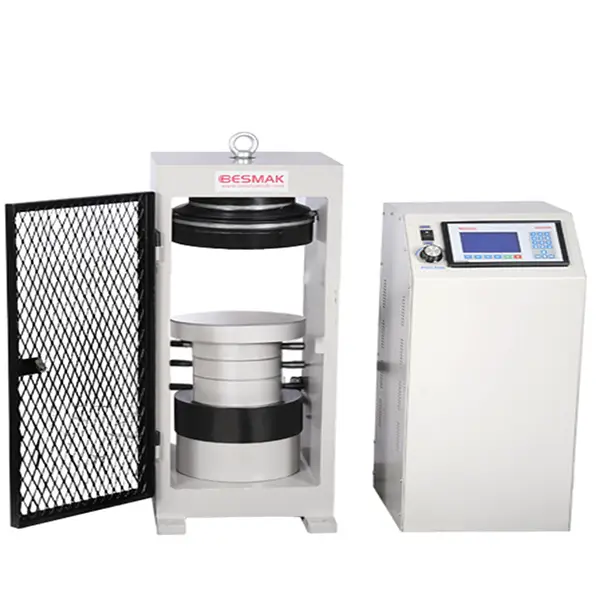

BCO-W/S – WELDED WALL TYPE FULLY AUTOMATIC HYDRAULIC COMPRESSION TEST MACHINE WITH SEMATRON
A compression test determines behavior of materials under crushing loads. The specimen is compressed and deformation at various loads is recorded. BESMAK can provide and offer a lot of options for users such as 4-Column and Wall Type Frame Structures, Fully and Semi Automatic, Membrane and Touch Screen concrete compression machines. BESMAK offers a classical membrane type compression machine without touch screen for its price sensitive customers.
Standards:
- TS EN 12390-4
- ASTM C39
- Rigid welded wall type frame
- Hydraulic unit
- 2×50 and 1×70 mm distance pieces
- 2 channel electronic controller
- PC software
- Software user manual
| Product Code | Product Name |
|---|---|
| BCO-W1000/S | Sematron Controlled Wall Type Concrete Compression Machine, 1000kN Capacity |
| BCO-W1500/S | Sematron Controlled Wall Type Concrete Compression Machine, 1500kN Capacity |
| BCO-W2000/S | Sematron Controlled Wall Type Concrete Compression Machine, 2000kN Capacity |
| BCO-W3000/S | Sematron Controlled Wall Type Concrete Compression Machine, 3000kN Capacity |
FRAME
- Rigid load frame in welded construction
- Suitable for testing 150x150x150, 200x200x200mm cube and 150×300, 160×320 mm cylinder samples (other dimensions are available upon request)
- Upper platen spherically seated to allow an inclination up to 3° for homogenous loading
- Given with corrosion-resistant distance platens for different size samples (30 mm, 50 mm, 70 mm, 80 mm)
- All transmission surfaces are additionally plane–parallel–treated and fine machined.
- Lower platen marked to allow centering of both cubes and cylinders
- Safety door switch for secure operations
- Piston limit switch for secure operations
- At the end of the test process to start a new test the piston returns to the default position
CONTROL UNIT AND DISPLAY
- The control unit has a membrane keypad and 2 analogue channels.
- LCD Graphic Display, Computer Connectable, with Concrete Testing Program.
- Sample, company, laboratory and test information can be entered in the program.
- Load-Time Stress-Time graphs, test reports and sample reports can be taken.
- Comes with PC software
LOAD MEASUREMENT AND CONTROL
Load measurement and control is carried out with a pressure sensor with a sensitivity of class 1 or better according to EN-ISO-7500-1 standard.
HYDRAULIC UNIT
Advanced hydraulic unit with multi-piston hydraulic pump driven by electrical motor, smooth and high flow rate, fast piston approach, with manifold and pressure limit valve, oil tank, comes with necessary joints
| PRODUCT CODE | BCO-W2000/FR | BCO-W3000/FR |
|---|---|---|
| Capacity | 2000 kN | 3000 kN |
| Piston Stroke | 50 mm | 3000 kN |
| Lower Platen Dia. | 300 mm | 300 mm |
| Upper Platen Dia. | 300 mm | 300 mm |
| Thickness of Platens | 46 mm | 46 mm |
| Vertical Clearence | 755 mm | 780 mm |
| Horizontal Clearance | 350 mm | 350 mm |
| Depth Range | 390 mm | 450 mm |
| Hardness of Platens | 55 HRC | 55 HRC |
| Test Chamber Height | 370 mm | 400 mm |
| Weight | 740 KG | 1280 KG |
| Dimensions | 505x410x1020 mm | 500x575x1250 mm |
