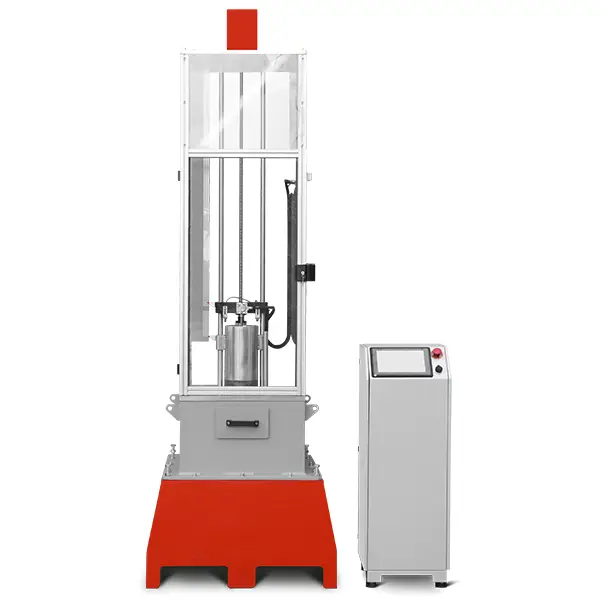

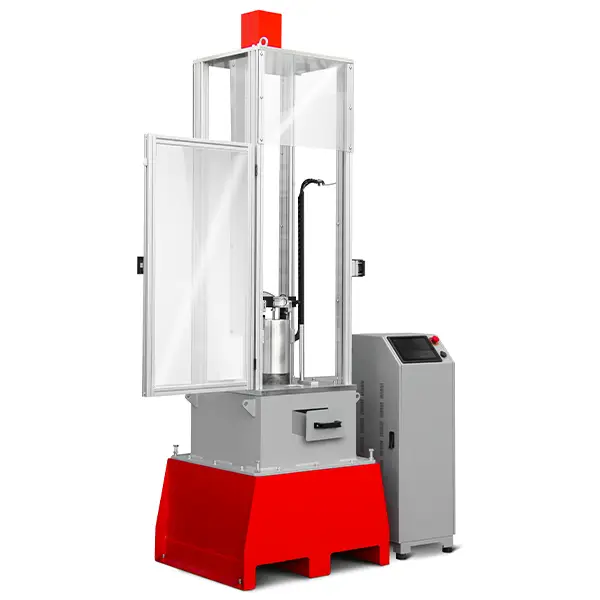

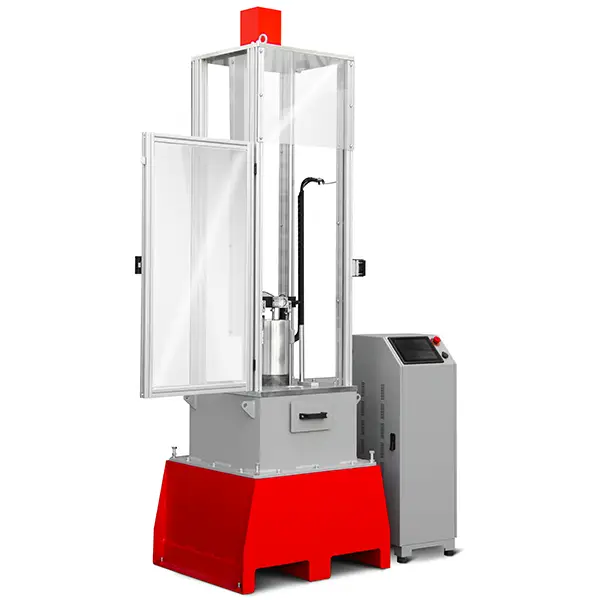

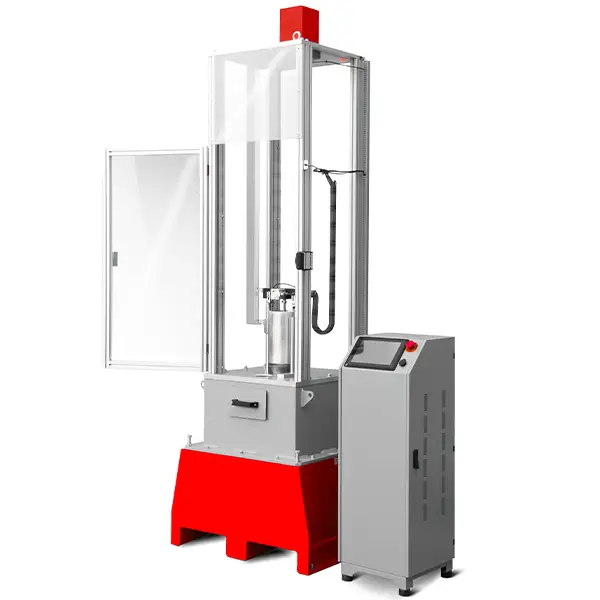

BMT-DW – DROP WEIGHT TESTER
BESMAK® BMT-DW Drop Weight Tester is designed to evaluate the impact resistance and toughness of materials at various impact velocities. It features an adaptable drop weight system that can be configured for low-speed impacts (~2.2 m/s) using a larger mass or higher-speed impacts (~6.6 m/s) using an acceleration mechanism. This flexibility makes the BMT-DW suitable for a wide range of impact tests, including those required by automotive industry standards. The tester’s efficient feeding and safety system provides optimal operator convenience and protection: pre-conditioned specimen plates can be loaded and impacted in less than five seconds, allowing many repeated puncture tests without the need for an external temperature chamber between tests. The instrument is also versatile enough to perform specialized impact tests such as Compression After Impact (CAI) as well as standard Charpy and Izod impact tests.
- Excellent accessibility to the impact test area for easy specimen placement and retrieval.
- No manual intervention required to open or reset safety enclosures in the test area between drops.
- Simple manual loading mechanism for introducing cooled (temperature-conditioned) specimens.
- Fast, safe, and easy changeover between different impact configurations (weights, heights, strikers).
- Automatic series testing mode allows multiple specimens to be tested sequentially without operator input between impacts.
- Automatic striker lubrication system to maintain consistent impact conditions.
- High natural frequency of the measurement system for accurate capture of rapid impact events.
- High data acquisition rate (up to 4 MHz) on all channels, providing excellent resolution of force–time curves.
- Large transient memory stores full-resolution impact data, ensuring both brittle and ductile material responses are recorded without loss.
- Covers the full energy range required by AITM 1.0010 (aerospace industry impact test standard).
| Product Code | Product Name |
|---|---|
| BMT-50DW | Drop Weight Impact Tester, 50J Capacity |
| BMT-100DW | Drop Weight Impact Tester, 100J Capacity |
| BMT-300DW | Drop Weight Impact Tester, 300J Capacity |
| BMT-400DW | Drop Weight Impact Tester, 400J Capacity |
