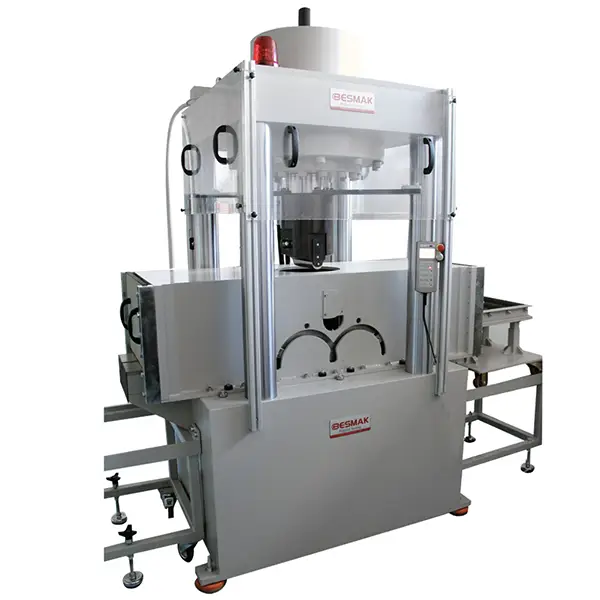

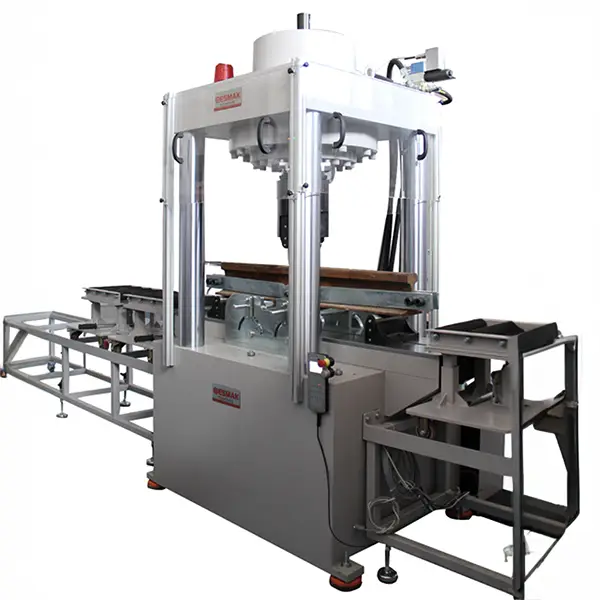

BMT-RS – SERVO HYDRAULIC RAIL AND SLEEPER BENDING TEST MACHINE
BESMAK® BMT-RSB Series Rail and Sleeper Bending Test Machines provide rigorous static and dynamic bending tests to verify the load-bearing capacity of railway rails and concrete sleepers. These servo-hydraulic systems feature a 4-column rigid frame designed to meet strict national and international standards for high-speed rail infrastructure components. Unlike generic solutions, BESMAK’s custom designs account for specific specimen dimensions and handling needs, ensuring accurate simulation of real-world track conditions (including trains at speeds over 300 km/h). The BMT-RSB machine can apply both load-controlled and displacement-controlled loads for bending tests on rails and sleepers with equal precision. A special specimen carriage system is included to simplify mounting and positioning of heavy samples. This versatile system allows both static and semi-dynamic bending tests of rails and sleepers to be conducted on a single machine with high accuracy.
Standards:
- ISO
- ASTM
- BS
- DIN
- EN
- AFNOR
- Capacity: up to 3000 kN bending force.
- Ergonomic working height and controls for operator comfort and productivity during heavy specimen testing.
- 4-column load frame with a differential hydraulic cylinder and high-precision load measurement system.
- Solid, surface-hardened hydraulic cylinder minimizes friction for smooth loading.
- Long piston stroke up to 500 mm, with an anti-rotation guide, to accommodate large deflections.
- Fully automatic test execution with programmable loading rates and profiles.
- Powered by BESMAK® universal testing software for control, data acquisition, and analysis.
| Product Code | Product Name |
|---|---|
| BMT-400RSD | Servo Hydraulic Rail and Sleeper Dynamic Fatique Test System, 400 kN Capacity |
| BMT-500RSD | Servo Hydraulic Rail and Sleeper Dynamic Fatique Test System, 500 kN Capacity |
| BMT-1000RSB | Servo Hydraulic Rail and Sleeper Bending Test Machine, 1000 kN Capacity |
| BMT-2000RSB | Servo Hydraulic Rail and Sleeper Bending Test Machine, 2000 kN Capacity |
| BMT-3000RSB | Servo Hydraulic Rail and Sleeper Bending Test Machine, 3000 kN Capacity |
| BMT-200SB | Servo Hydraulic Sleeper Bending Test Machine, 200kN Capacity |
| BMT-400SB | Servo Hydraulic Sleeper Bending Test Machine, 400 kN Capacity |
| BMT-500SB | Servo Hydraulic Sleeper Bending Test Machine, 500 kN Capacity |
| BMT-600SB | Servo Hydraulic Sleeper Bending Test Machine, 600 kN Capacity |
