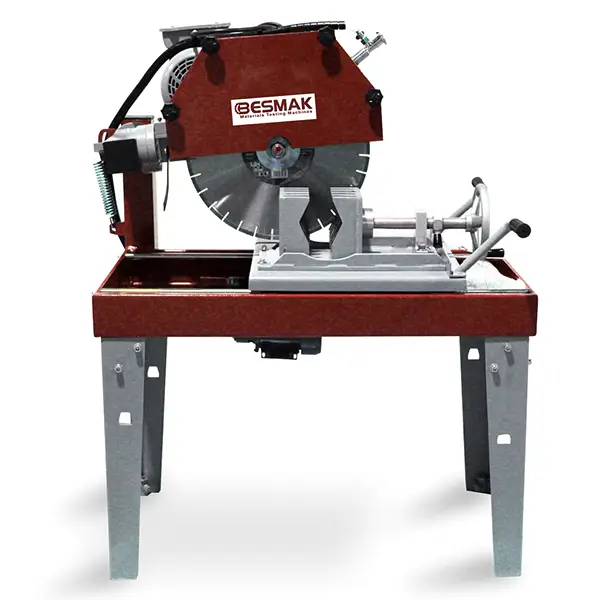

BRC-702 – SAMPLE CUTTING SAW
Category:
Concrete
- The machine designed for use in laboratories and many fields of geology especially rock mechanics and mineralogy.
- It is used to flatten surfaces of core samples, which taken from rocks and concrete.
- It allows wet cutting with water pump assembly and can cut samples.
| Product Code | BRC-702/1 Sample Cutting Saw, Junior | BRC-702/2 Sample Cutting Saw, Senior |
|---|---|---|
| Dimensions (LxWxH) | 1100x710x1350 mm | 1350x600x1250 mm |
| Weight | 135 kg | |
| Blade Diameter | 450 mm | 300 mm |
| Cutting Height | 175 mm | 95 mm |
| Cutting Length | 500 mm | 900 mm |
| Blade Hole Diameter | 25,4 mm | 25,4 mm |
| Blade Speed | 1420 devir/dakika | 2800 devir/dakika |
| Saw Motor | 3 KW – 4 HP – 50 Hz | 2,2 KW – 3 HP – 50 Hz – 5,67 A |
| Voltage | 220 ve 380 Volt | 380 Volt |
| Water Pump | 0,37 KW – 0,5 HP – 50 Hz – 2,4 A | 0,37 KW – 0,5 HP – 50 Hz – 2,4 A |
| Voltaj | 220 Volt | 220 Volt |
