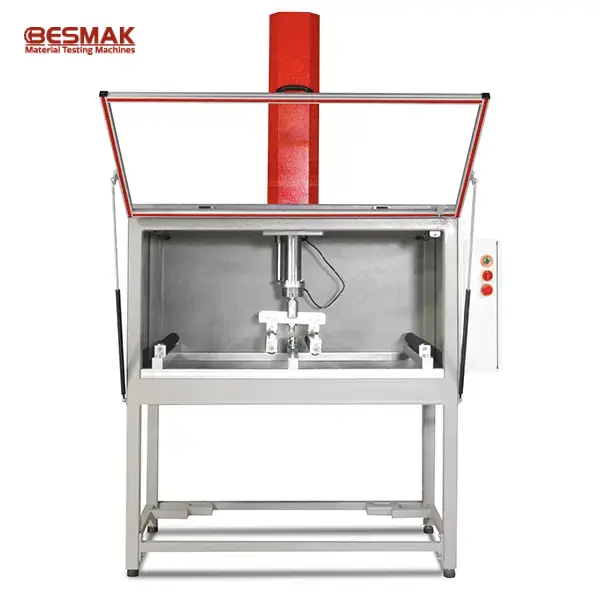

GLAZING TESTING MACHINE – BMT-20 E
A glazing testing machine is used to evaluate the mechanical performance of glazing materials and insulating glass assemblies. It measures pull strength, seal durability, bending resistance, and compression behavior under controlled loading conditions. The BMT-20 E provides highly accurate and repeatable results for research, certification, and production quality assurance.
Standards:
- EN-1279-4
- EN-1279-6
- 1288
Key Features of the BMT-20 E Glazing Testing Machine
20 kN Capacity with Closed-Loop Force and Displacement Control
- 20 kN load capacity for precise glazing and glass testing
- Rigid wall-type frame for excellent stability
- High-performance AC servo motor with backlash-free drive
- Closed-loop load and displacement control
- High-resolution encoder for accurate movement measurement
- Low-noise and maintenance-free electromechanical design
- Compact footprint suitable for laboratories
- Automatic return-to-start function after each test
Advanced SEMATRON Control and Universal Testing Software
Real-Time Data Acquisition and Professional Reporting
The integrated SEMATRON controller and BESMAK Universal Testing Software enable full computer-controlled operation. Operators can monitor live graphs, collect data automatically, and generate professional reports. The software supports customizable test methods and easy export of results for analysis and certification.
Applications of the Glazing Testing Machine
Ideal for Insulating Glass, Façade and Structural Glass Testing
The BMT-20 E is suitable for:
- Insulating glass durability testing
- Glazing seal strength evaluation
- Glass pull tests
- Glass tensile tests
- 3-point and 4-point bending tests
- Compression-bending tests
- Structural glazing qualification
- Research and development testing
Compliance with International Standards
Designed for EN 1279, EN 1288 and ASTM Glass Testing Standards
This glazing testing machine is designed to meet major international standards, including:
- EN 1279-4 – Filling Machine Control Glazing
- EN 1279-6 – Glass Pull Test
- EN 1288 – Four-Point Bending Test
- ASTM C158
- ASTM C1499
- ISO 7500-1
Included Accessories
Complete Fixture Set for Multiple Glass Test Methods
The machine can be supplied with:
- Glass tensile jaw
- Pull-lathe jaw
- C-type tensile grip (2 kN)
- 3-point bending accessory
- 4-point bending accessory
- Custom fixtures for special glazing applications
Industries Using Glazing Testing Machines
Trusted by Glass Manufacturers and Accredited Laboratories
- Insulating glass manufacturers
- Curtain wall and façade producers
- Construction material laboratories
- Certification bodies
- Universities and research institutes
- Automotive glass manufacturers
Why Choose BESMAK Glazing Testing Machine?
Engineered for Precision, Built for Reliability
BESMAK designs and manufactures advanced material testing machines for demanding industrial and research applications. The BMT-20 E combines precise servo technology, intuitive software, and robust mechanical construction to deliver accurate and repeatable glazing test results with confidence.
Technical Specifications
BMT-20 E Main Technical Data
| Specification | Value |
|---|---|
| Capacity | 20 kN |
| Drive Type | Servo-Electromechanical |
| Control System | SEMATRON Controller |
| Software | Universal Testing Software |
| Test Types | Tensile, Pull, Bending, Compression |
| Standards | EN 1279, EN 1288, ASTM, ISO |
| Frame Type | Rigid Wall-Type |
Request a Quote for Glazing Testing Machine
Contact BESMAK for Expert Support
Looking for a reliable glazing testing machine for insulating glass and façade testing? Contact BESMAK to receive technical information, application guidance, and a customized quotation.
