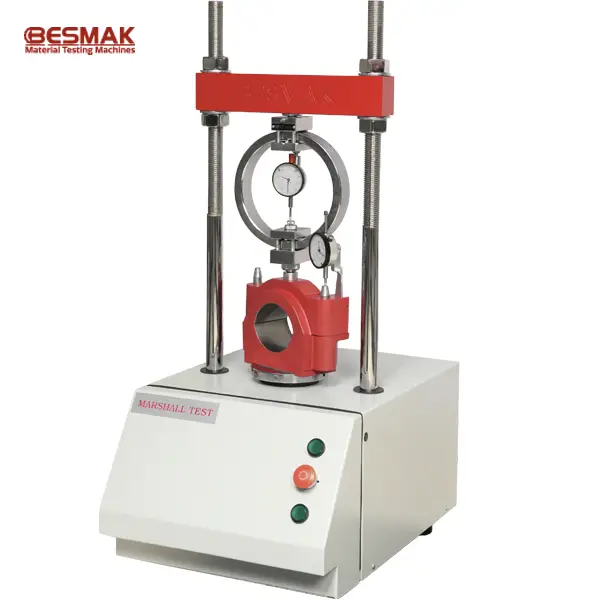

Multi Speed CBR Marshall Test Machine for CBR and Marshall Testing

The Multi Speed CBR Marshall Test Machine is designed to perform both CBR (California Bearing Ratio) and Marshall tests using a single 50 kN test frame. Combining two testing methods in one machine helps laboratories reduce equipment costs while maximizing workspace and operational efficiency.

The adjustable upper crosshead allows quick replacement of the testing accessories required for either CBR or Marshall testing. Equipped with a high-precision Sematron LCD digital controller and a servo-driven electromechanical system, the machine delivers accurate, repeatable, and fully controlled testing performance.

The machine operates at 1.27 mm/min for CBR testing and 50.8 mm/min for Marshall testing, fully complying with relevant BS and ASTM standards. Test results are displayed on the digital controller, stored automatically, and can be transferred to a computer for further analysis and reporting.

Technical Specifications

Combined CBR and Marshall Testing Machine

The Multi Speed CBR Marshall Test Machine combines CBR and Marshall testing capabilities in a single robust testing frame.

Its adjustable upper crosshead allows rapid installation of the appropriate testing fixtures, enabling laboratories to switch quickly between CBR and Marshall testing without requiring separate machines. This dual-purpose design improves laboratory productivity while reducing equipment investment.

Digital Control with Sematron LCD Display Unit

The machine is equipped with the advanced Sematron LCD Digital Control Unit, providing precise control of the testing process and real-time monitoring of test parameters.

The controller offers:

• Real-time load and displacement display
• Automatic test control
• Digital result storage
• Easy operation through an intuitive interface
• PC connectivity for data transfer and laboratory management
• Reliable and repeatable testing performance

Key Features of the Multi Speed CBR Marshall Test Machine

• 50 kN testing capacity
• Performs both CBR and Marshall tests
• Two testing methods in one machine
• Adjustable upper crosshead
• Quick fixture replacement
• Sematron LCD digital controller
• Precision servo electromechanical drive system
• High testing accuracy
• CBR test speed of 1.27 mm/min
• Marshall test speed of 50.8 mm/min
• Automatic digital test display
• Test data storage
• Computer connectivity
• Suitable for BS and ASTM testing procedures
• Compact laboratory design

Test Speeds

The Multi Speed CBR Marshall Test Machine automatically operates at the required loading speed according to the selected testing method:

These loading speeds comply with the requirements of the relevant BS and ASTM testing standards.

Standards

• EN 12697-34
• BS 598-107
• EN 13108
• ASTM D1559
• ASTM D6927
• ASTM D1883 (CBR Test)
• AASHTO T193 (CBR Test)

Applications of the Multi Speed CBR Marshall Test Machine

The Multi Speed CBR Marshall Test Machine is suitable for:

• CBR testing
• Marshall stability testing
• Marshall flow testing
• Soil testing laboratories
• Asphalt testing laboratories
• Road and pavement engineering laboratories
• Construction materials laboratories
• Geotechnical laboratories
• Quality control laboratories
• Research and development laboratories
• University laboratories

Why Choose a Multi Speed CBR Marshall Test Machine?

The Multi Speed CBR Marshall Test Machine enables laboratories to perform both CBR and Marshall testing using a single 50 kN testing system, significantly reducing equipment costs and laboratory space requirements.

Its adjustable upper crosshead allows fast fixture replacement, while dedicated loading speeds ensure compliance with each testing method. The advanced Sematron controller provides accurate digital measurement, automatic data storage, computer connectivity, and reliable test management for routine quality control and research applications.

Frequently Asked Questions About the Multi Speed CBR Marshall Test Machine

What is a Multi Speed CBR Marshall Test Machine?

A Multi Speed CBR Marshall Test Machine is a dual-purpose laboratory testing machine designed to perform both CBR (California Bearing Ratio) and Marshall tests using a single testing frame.

What is the testing capacity of the machine?

The machine has a maximum testing capacity of 50 kN.

What is the loading speed for CBR testing?

The machine performs CBR tests at a loading speed of 1.27 mm/min.

What is the loading speed for Marshall testing?

Marshall tests are performed at a loading speed of 50.8 mm/min.

Can the machine perform both CBR and Marshall tests?

Yes. It is specifically designed to perform both testing methods using one machine with interchangeable accessories.

Is the upper crosshead adjustable?

Yes. The upper crosshead is height-adjustable, allowing quick installation of the appropriate fixtures for either CBR or Marshall testing.

How are test results displayed?

Test results are displayed on the Sematron LCD Digital Control Unit, where they can also be stored for future reference.

Can the machine connect to a computer?

Yes. The machine supports PC connectivity for test management, data transfer, analysis, and report generation.

What are the machine dimensions and weight?

The machine has dimensions of 400 × 605 × 960 mm and weighs approximately 70 kg.
