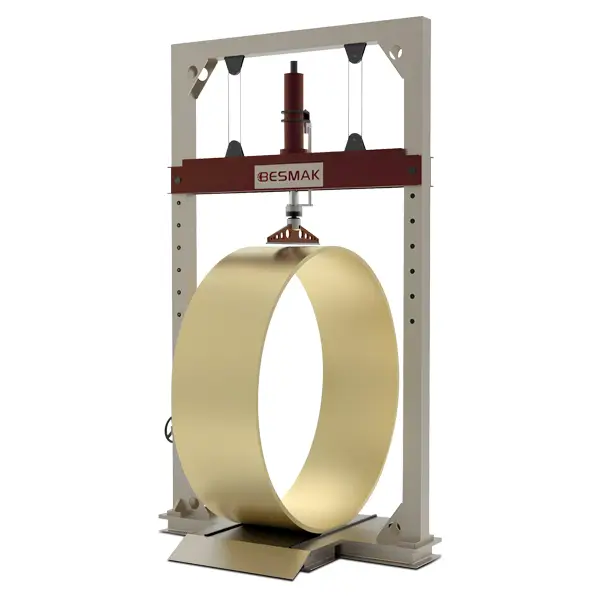

BMT-BH – SERVO-HYDRAULIC PIPE RING STIFFNESS TEST MACHINE
BESMAK® BMT-BH Servo-Hydraulic Pipe Stiffness Testing Machines are built for high-capacity loading of large-diameter pipe specimens. Using a servo-hydraulic actuation system, these machines can apply the very high forces necessary to test the stiffness and load-bearing capacity of concrete and composite pipes, including those used in infrastructure and drainage systems. The robust 4-column frame and closed-loop control ensure smooth and accurate load application over long durations, which is crucial for standard pipe crushing and creep tests. Like the electromechanical version, the servo-hydraulic BMT-BH machines accommodate pipe diameters from 200 mm up to 4000 mm, enabling comprehensive testing across a wide range of pipe sizes with reliable, repeatable results.
Standards:
- N/A
- Axial load capacity up to approximately 1000 kN (customizable to specific testing requirements).
- Special electromagnetic displacement sensor for highly accurate piston travel measurement during loading.
- Adjustable crosshead design to handle various specimen sizes and lengths.
- Ergonomic working height and user-friendly controls to improve operator efficiency and safety.
- Long-stroke, high-speed hydraulic actuator ideal for repetitive loading of pipes with similar dimensions.
- Anti-rotation guidance prevents any torsional movement of the actuator during the compression of the pipe.
- Hydraulic system configuration and machine performance can be tailored to the application (e.g., faster loading rates or higher capacity, as needed).
| Product Code | Product Name |
|---|---|
| BMT-30/BH | Pipe Ring Stiffness Test Machine, 30 kN Capacity |
| BMT-50/BH | Pipe Ring Stiffness Test Machine, 50 kN Capacity |
| BMT-100/BH | Pipe Ring Stiffness Test Machine, 100 kN Capacity |
| BMT-150/BH | Pipe Ring Stiffness Test Machine, 150 kN Capacity |
| BMT-200/BH | Pipe Ring Stiffness Test Machine, 200 kN Capacity |
| BMT-300/BH | Pipe Ring Stiffness Test Machine, 300 kN Capacity |
LOAD MEASUREMENT AND CONTROL
- Can work in both, displacement/deformation mode and load control mode (with and without extensometer – optional).
- Load measurement and control is carried out with a load cell of class 0.5
- Sensitivity: 0.01 kN/sec
- Resolution: 24 bit
- Load Control Speed: 0,01 – 10 kN / sec
- Control Speed Accuracy: 0,50. 5% of the set value
- Displacement Measurement Resolution: 1 micron
- Displacement Control Speed: 0.0001 – 500 mm/min
- Special Electro-magnetic displacement sensor accurately measures actuator travel at the center of the load string
- Long stroke, high speed actuator is well-suited for pipe testing applications requiring repetitive testing of similar-sized samples
- Anti-rotation system prevents actuator from rotating during test stroke
- Choice of hydraulic configuration and machine performance to suit application
LOAD MEASUREMENT AND CONTROL
- SEMATRON Closed-Loop Controller
- BESMAK Universal Testing Software
- Controller has 1000 Hz (1 kHz) data acquisition-processing and automatic calibration feature (2,5 kHz option is available)
- Controller has 12 channels and is feasible to attach video extensometer, laser extensometer, LVDT, automatic extensometer, strain gauge, load cell, SSI and TTL type sensors (sensors are optional)
- Position measurement and control with position encoder of 1 micron resolution
- Remote control unit with Live Display, Soft keys and Specimen Protect for enhanced usability and productivity. Operator can move machine up and down without use of computer to fix sample into the machine easily accurately and safely
FRAME
- Rigid 2-column construction
BMT-S/BH SERIES PIPE RING STIFFNESS TEST MACHINE COMES WITH
- 2 column rigid frame
- Hydraulic unit
- Electronic controller
- Linux based 10 inch industrial LCD display with built in test software
- PC software
- Software user manual
