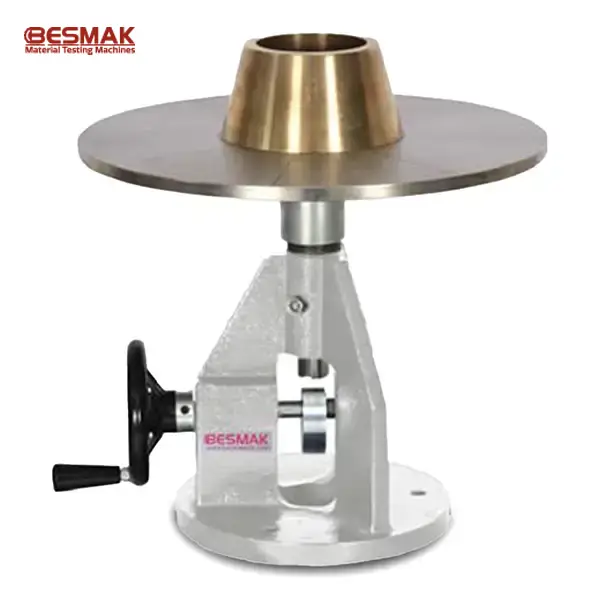

Features of the BESMAK Mortar Flow Table
- Precision cast-bronze flow table for maximum durability
- Available in both manual and motorized models
- Heavy-duty construction for long service life
- Precision-machined bronze flow mould
- Standardized drop mechanism
- Corrosion-resistant design
- Easy operation and maintenance
- Accurate and repeatable mortar consistency measurements
- Ideal for routine laboratory quality control
- Designed for continuous laboratory use
Technical Specifications
| Specification |
Value |
| Table Diameter |
254 mm |
| Table Material |
Cast Bronze |
| Combined Weight with Shaft |
4.1 ± 0.05 kg |
| Drop Height |
Produces 12.7 mm table drop |
| Flow Mould Material |
Machined Bronze |
| Top Internal Diameter |
69.8 mm |
| Base Internal Diameter |
101.6 mm |
| Height of Flow Mould |
50.8 mm |
| Dimensions |
254 × 254 mm |
| Approximate Weight |
10 kg |
Available Models
| Product Code |
Model |
| BCE-314/1 |
Manual Mortar Flow Table |
| BCE-314/2 |
Motorized Mortar Flow Table |
| BCE-314/3 |
Flow Table Mould |
Applications
The BESMAK Mortar Flow Table is widely used in:
- Cement laboratories
- Mortar manufacturing facilities
- Construction material testing laboratories
- Ready-mix concrete laboratories
- Universities and research institutes
- Building material quality control laboratories
- Independent testing laboratories
Standards
The BESMAK Mortar Flow Table complies with the following international standards:
- EN 459-2
- EN 1015-3
- ASTM C230
- EN 13279-2
Why Choose the BESMAK Mortar Flow Table?
The BESMAK Mortar Flow Table combines robust construction with exceptional measurement accuracy, providing reliable and repeatable mortar consistency testing for daily laboratory operations. Manufactured from premium-quality materials, it delivers long-term durability while minimizing maintenance requirements.
Available in both manual and motorized versions, it enables laboratories to choose the most suitable solution based on testing frequency, workflow, and productivity requirements.
Related Products
Frequently Asked Questions (FAQ)
What is a Mortar Flow Table?
A Mortar Flow Table is a laboratory testing device used to determine the consistency and workability of fresh cement mortar by measuring its spread after a specified number of standardized drops.
What is ASTM C230?
ASTM C230 is the international standard that specifies the apparatus and procedures for determining the flow of hydraulic cement mortar using a standardized flow table.
What is the difference between manual and motorized Mortar Flow Tables?
A manual Mortar Flow Table is operated by hand, whereas a motorized model performs the required drops automatically. Motorized units improve testing repeatability, increase efficiency, and reduce operator effort.
Which laboratories use a Mortar Flow Table?
Mortar Flow Tables are commonly used in:
- Cement manufacturing laboratories
- Construction material testing laboratories
- Ready-mix concrete laboratories
- Universities and research institutes
- Quality control laboratories
- Independent testing laboratories
Why is mortar flow testing important?
Mortar flow testing is essential for evaluating the consistency and workability of fresh mortar. It helps ensure uniform material performance, reliable test results, and compliance with international quality standards during cement and mortar production.
